Electrtical Polyester(PET) Insulation Tape

Electrtical Polyester(PET) Insulation Tape

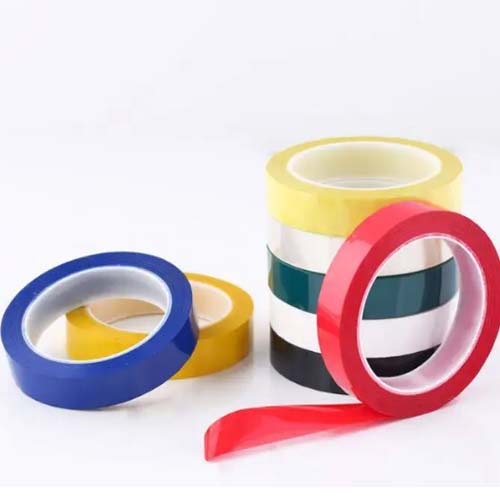

Electrical Polyester Insulation Tape is a high-performance insulating tape manufactured from polyester (PET) film, coated with a pressure-sensitive adhesive. It combines the excellent electrical and mechanical properties of polyester film with the convenience of a tape format, making it ideal for a wide range of electrical insulation applications.

This tape provides reliable electrical isolation, thin profile for tight spaces, and good thermal resistance. It is widely used in the manufacture and repair of transformers, coils, motors, and wire harnesses, as well as for electronic component insulation.

Key Features & Benefits

• High Dielectric Strength: Provides reliable electrical insulation in thin cross-sections.

• Thin and Conformable: Wraps tightly around coils, wires, and irregular shapes without adding excessive bulk.

• Good Mechanical Strength: Resists tearing, puncturing, and abrasion during application and in service.

• Solvent-Resistant Adhesive: [Specify adhesive type, e.g., Acrylic / Rubber-based ] resistant to common solvents and varnishes used in electrical manufacturing.

Thickness: 0.15-0.35mm etc

Width: 5mm ~ 1280mm, can be customized

Length: 100m

Application:

The polyester tape is widely used in transformers, motors, capacitors, electronic resistors, and insulation wrapping.

FAQ

Q1: What is the difference between polyester tape and polyimide (Kapton®) tape?

A: Polyester tape offers excellent electrical properties and is more cost-effective for applications up to Class B/F temperatures (130–155°C). Polyimide tape is rated for higher temperatures (up to 260°C) and is used in more demanding thermal environments. Polyester is the preferred choice for most general transformer and coil applications.

Q2: Can this tape be used with varnish impregnation systems?

A: Yes, polyester tape is compatible with most standard varnishes. The tape provides a barrier layer while allowing impregnation of the underlying windings.

Q3: Can you supply tape in non-standard widths?

A: Yes, we offer precision slitting to customer-specified widths. Minimum order quantities may apply.
