2830、2840、2853 Impregnated Fiberglass Tape
Additional Information
Type: Insulation Tape
Material: Fiberglass
Insulation class: B(130℃) / F(155℃) / H(180℃) as product
Thickness: 0.17mm , 0.20mm ,0.30mm or customized
Width: 10mm, 15mm, 20mm, 25mm, 30mm, 50mm
Application: Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Switch Baseplate
2830、2840、2853 Impregnated Fiberglass Tape

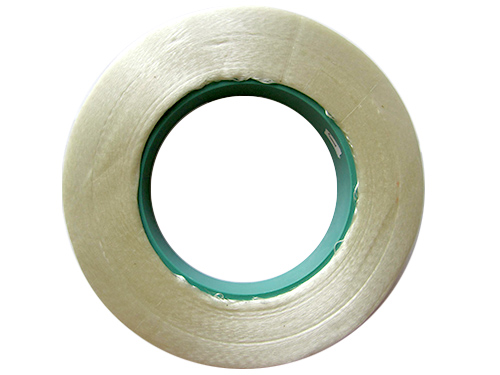

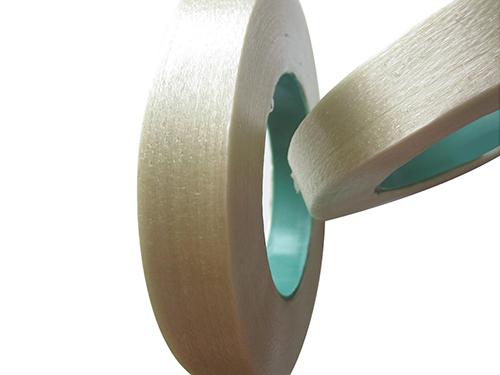

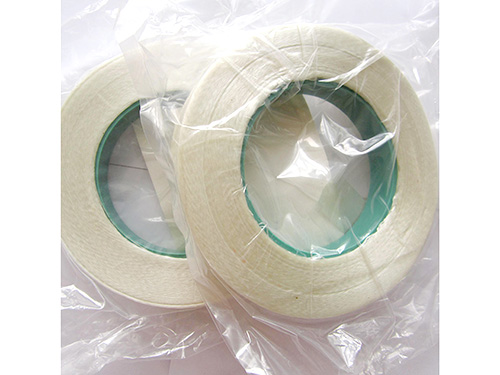

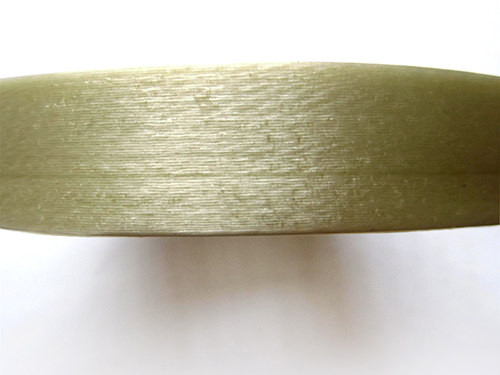

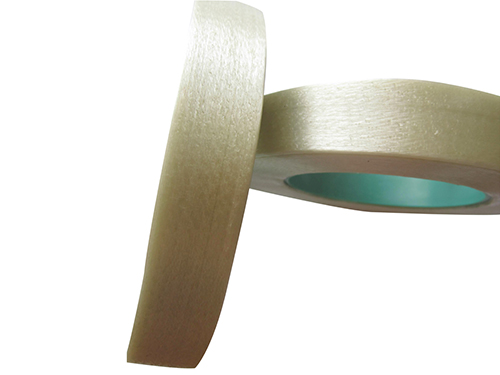

2830、2840、2853 Impregnated Fiberglass Tape Introduction
Polyester resin impregnated fiberglass banding tape is one of the electrical insulation tape. It is made of parallelly twisted Fiberglass yarns pre-impregnated with a kind of thermosetting epoxy resin. It is soft and sticky. Its web-shape structure is easily unwinded without glass strands separation and overlapping.
Insulation class: B(130℃) / F(155℃) / H(180℃) as product
Thickness: 0.17mm , 0.20mm ,0.30mm or customized
Width: 10mm, 15mm, 20mm, 25mm, 30mm, 50mm
Model No. | Name | Temp |
2830 | Unsaturated polyester resin impregnated fiberglass binding tape | B(130℃) |
2840 | Epoxy resin impregnated fiberglass binding tape | F(155℃) |
2850 | polyamine imide impregnated fiberglass binding tape | H(180℃) |
2830、2840、2853 Impregnated Fiberglass Tape Features
1. Strength and high modulus and
2. shocks resistance,
3. no magnetically confining and
4. eddy current losses.
2830、2840、2853 Impregnated Fiberglass Tape Applications
Widely used as ideal banding materials for electrical motors, transformers, and lightning arresters. Used as banding materials for electrical motors, transformers, lightning arresters, and mutual inductors.
Storage:
It should be stored in places under 30℃. If the ambient temp is over 30 30℃, it should be stored in the refrigerator.
2830、2840、2853 Impregnated Fiberglass Tape Specifications
MODEL | DESCRIPTION | THERMAL CLASS | VOLATILE CONTENT | RESIN CONTEN | MAX. BANDING STRENGTH |
2830 | Unsaturated polyester resin impregnated fiberglass banding tape | B | ≤5% | 27±2% | 800N/cm |
2840 | Epoxy resin impregnated fiberglass banding tape | F | 800N/cm | ||
2841-W | Modified epoxy resin impregnated fiberglass banding tape | F | 800N/cm | ||
2850 | Polyamine-imide resin impregnated fiberglass banding tape | H | 800N/cm | ||
