Fiberglass Insulation Tape
Additional Information
Type: Insulation Tape
Thickness: 0.1mm, 0.12mm, 0.15mm, 0.17mm
Width: 20mm, 25mm, 30mm, 50mm
Rated temperature: 180 ºC;
Standard Color: White( can add red or blue line in the middle)
Length: Normal package 30 or 50 meters per roll, any special package is feasible.
Application: Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Switch Baseplate
Fiberglass Insulation Tape
Fiberglass Insulation Tape Introduction

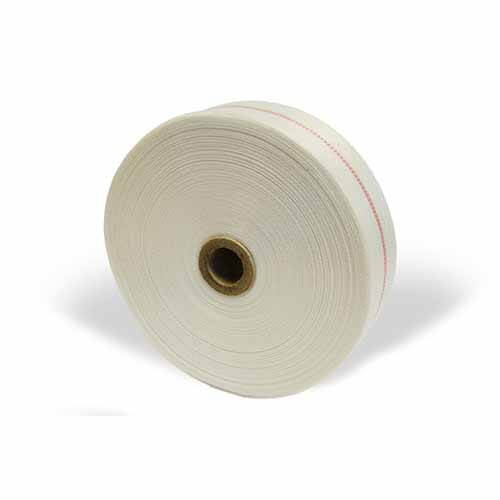

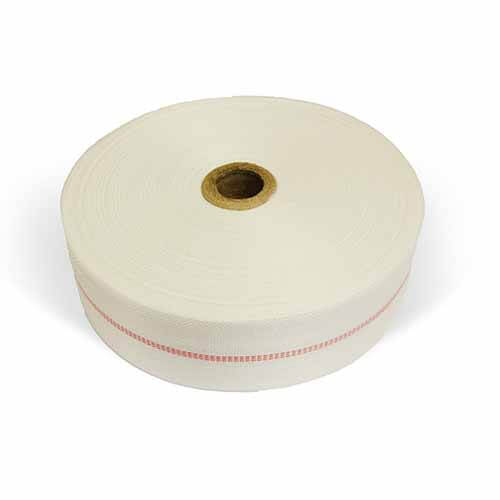

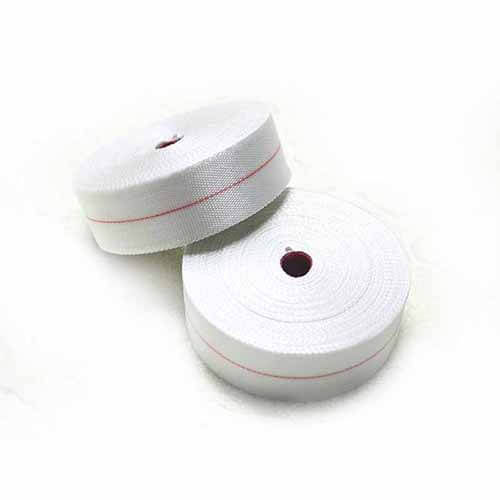

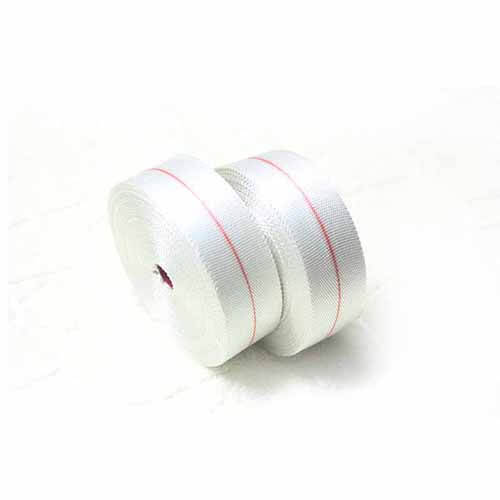

Fiberglass insulation tape is one of the electrical insulation tapes. It is weaved by no-alkali fiberglass yarn, with good thermal resistance and insulation features. It is widely used for windings of motor, electric cooker, air-core reactor, and dry transformer.
Thickness: 0.1mm, 0.12mm, 0.15mm, 0.17mm
Width: 20mm, 25mm, 30mm, 50mm
Rated temperature: 180 oC;
Standard Color: White( can add red or blue line in the middle)
Length: Normal package 30 or 50 meters per roll, any special package is feasible.
Fiberglass Insulation Tape Applications
It is used for binding, intern, winding of electrical motor. It can be also used as wrapping and banding material for transformers, electric motors, and cables.
Fiberglass Insulation Tape Features
1. Good flame-retardant property
2. Good thermal resistance
3. Excellent insulating
4. Corrosion resistance
Fiberglass Insulation Tape Specifications
Test content | Unit | Standard | |
Appearance | Smooth and white, not any impurity | ||
Standard roll length | M | 50 meters per roll and each roll allow one junction. | |
Tolerance | thickness | mm | ± 0.01 |
width | mm | ± 2 | |
length | m | ± 6 | |
Soluble resin content | % | ≥ 90 | |
Tensile strength | N/cm | above: 196 | |
Elongation at break | % | 7 | |
Breakdown voltage min. | KV | 1.5 | |
Standard color | white | ||
