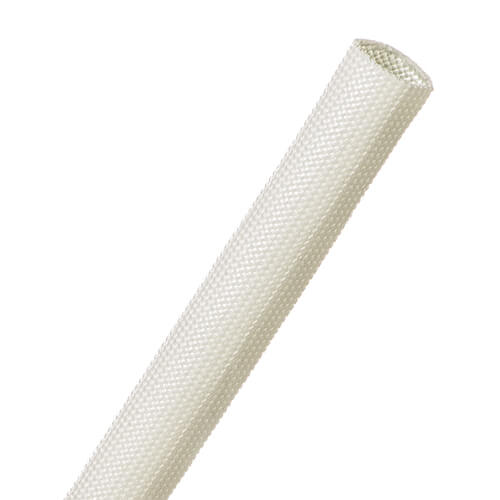

2740 Acrylic Fiberglass Sleeving
Additional Information
Type: Insulation Sleeving
Material: Fiberglass
Diameter: 0.5~30mm
Length: in one meter, in coils 50m-100m/coil, also can be customized
Color: yellow, white, red, black, other colors according to request
Insulation Class: class F (155℃)
Breakdown Voltage: 2.5kv, 4KV
Application: Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Switch Baseplate

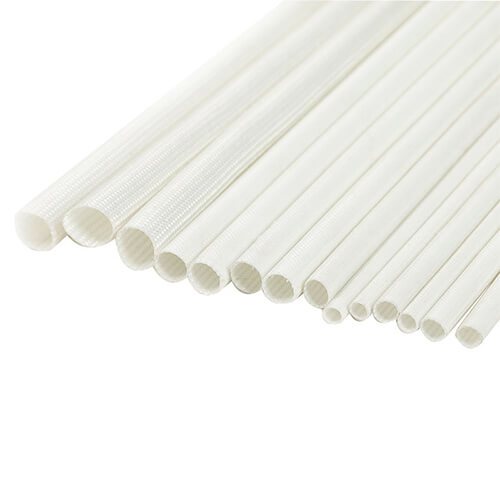

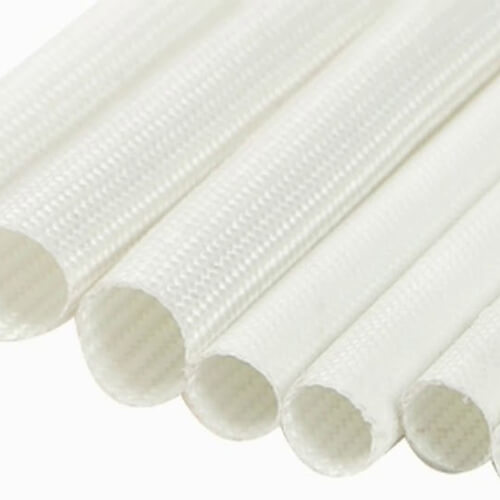

2740 Acrylic Fiberglass Sleeving
2740 Acrylic Fiberglass Sleeving Introduction
2740 acrylic fiberglass sleeving is one of fiberglass sleeve insulation which is made of non-alkali fiber braided sleeving coated with acrylic resin. It has features of good dielectric properties, excellent oil, heat and benzene resistance, excellent softness, and elasticity. It’s used for the wiring insulation and mechanical protection for motors, electrical appliances, electrical instruments, wireless sets.
Diameter: 0.5~30mm

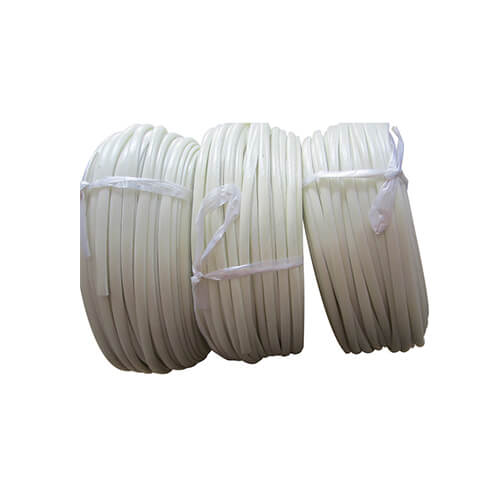

Length: in one meter, in coils 50m-100m/coil, also can be customized
Color: yellow, white, red, black, other colors according to request
Insulation Class: class F (155℃)
Breakdown Voltage: 2.5kv, 4KV
Color: yellow, white, red, black, and many other colors upon request
2740 Acrylic Fiberglass Sleeving Features
1. Smooth appearance
2. Excellent softness, elasticity, dielectric properties
3. Chemical resistance
2740 Acrylic Fiberglass Sleeving Applications
It’s used for the wiring insulation and mechanical protection for motors, electrical appliances, electrical instruments, wireless sets, and domestic electrical appliances.
2740 Acrylic Fiberglass Sleeving Specifications
Item | Normal value | ||
Inner dia.& wall thickness(mm) | inner dia(mm) | wall thickness(mm) | |
standard | tolerance | min | max |
0.5-3.0mm | ±0.20mm | 0.45mm | ±0.10mm |
4.0-9.0mm | ±0.25mm | 0.55mm | ±0.15mm |
10-14mm | ±0.50mm | 0.70mm | ±0.20mm |
16-20mm | ±1.00mm | 0.90mm | ±0.30mm |
Flame resistance | not less than 45 sec./25mm | ||
Elasticity | no cracking or detachment of coating visible (1) after 3 hours at 200±2°C. (2) after 2 hours at –40±6°C | ||
Breakdown voltage | room temp. | 4.0kv.min | |
after damp | 2.0kv.min | ||
Heat resistance | no cracking detachment of coating visible after 72 hours at 200±5°C | ||
