Mica Insulation Sheet
Additional Information
Type: Mica tape
Material: Mica
Thickness: 0.08mm-0.18mm
Width: 4.5mm-1000mm
Length: 500m 1000m 2000m. Traverse wound spools optional
Standard cores: 52mm 54mm 76mm 120mm
Application: Insulators, Electrical Winding Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Switch Baseplate, Household Electric Appliances and Metallurgy

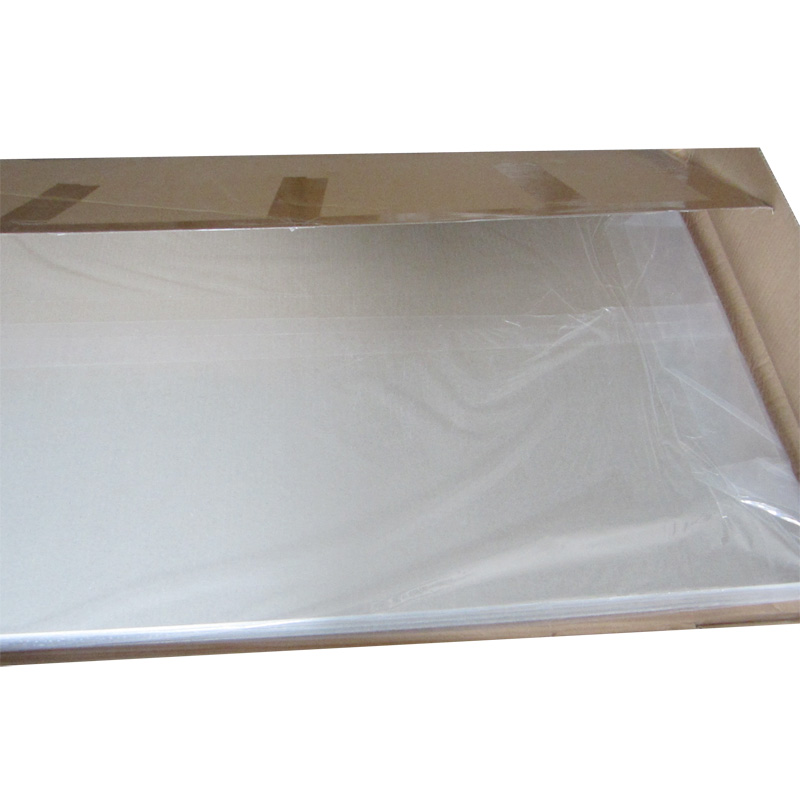

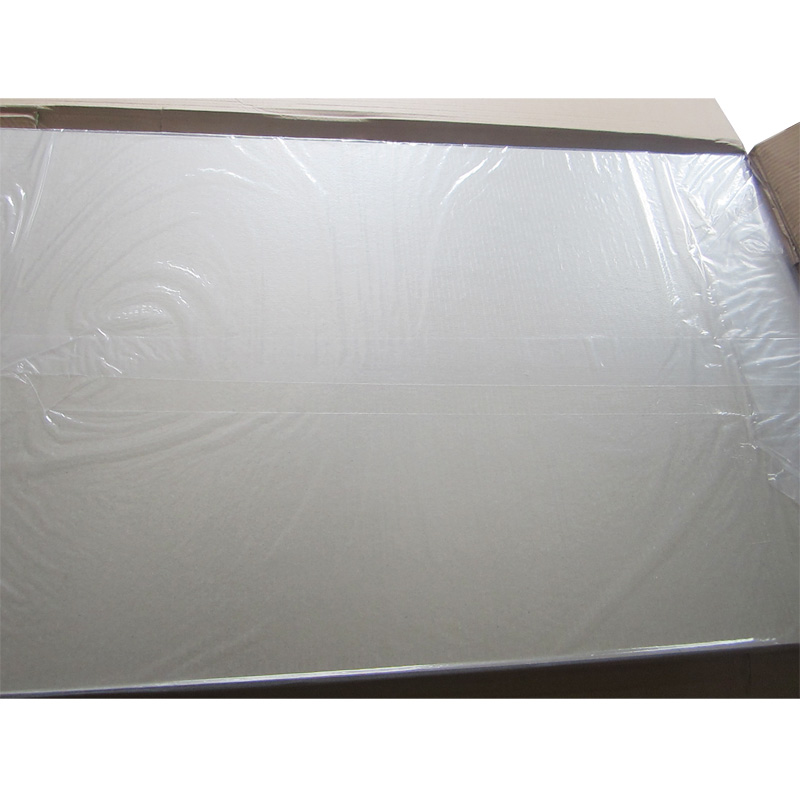

Mica Insulation Sheet
Mica Insulation Sheet Introduction

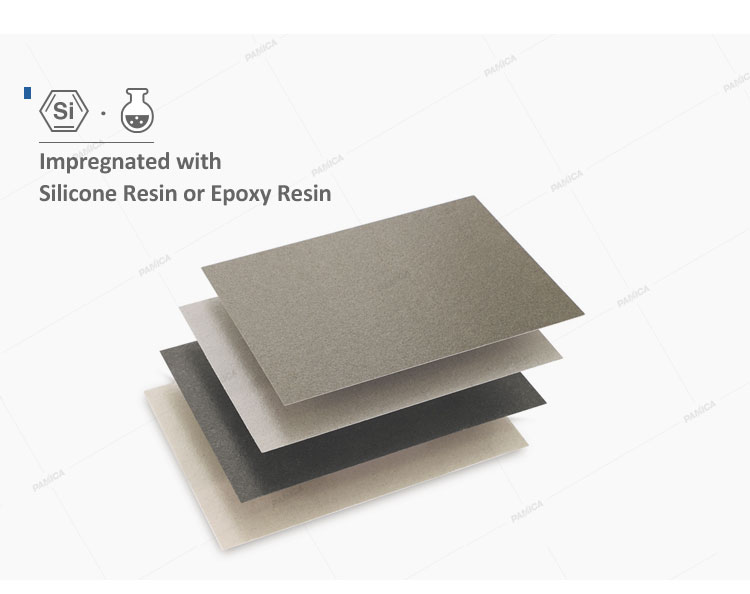

Mica insulation sheet or mica sheet electrical insulation is a type of mica lamination designed for providing outstanding electrical insulation at high temperature, which consists of approximately 90% Muscovite(or Phlogopite)and 10% temperature resistant silicone resin.
Thickness:0.1mm 0.15mm 0.2mm-20mm
Size:1000*600mm
Thickness: below 2.0mm can be punched, while above 2.0mm can be machined by agreement.
Mica Insulation Sheet Properties

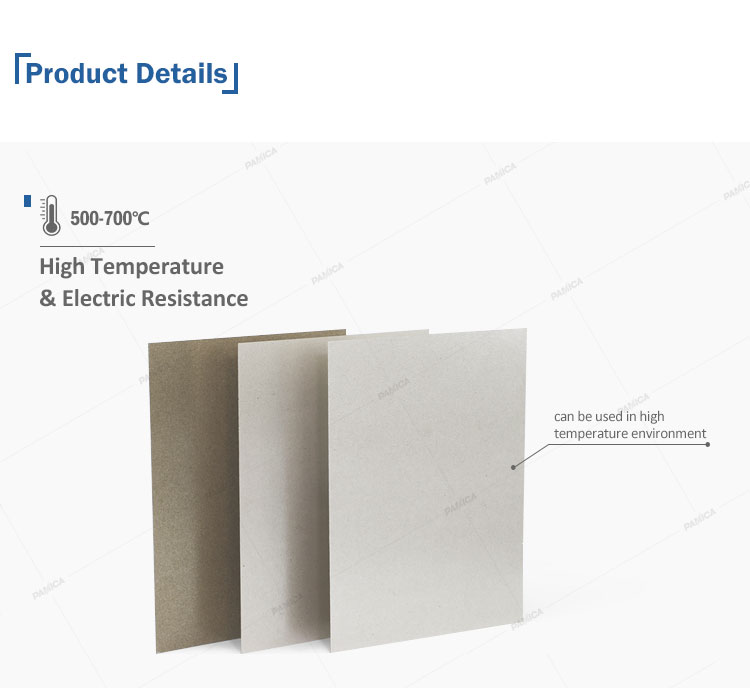

1. Excellent thermal resistance, muscovite mica retain insulation properties at 500oC and phlogopite mica sheet resistant temperature up to 750oC.
Excellent electric insulation, normally the breakdown voltage is more than 15KV/mm.
3. Excellent flexural strength and easy to be punched and machined.
4. Environmental safe. It is incombustible, asbestos, and halogen free and does not create toxic gases.
Storage
No limitation under dry and room temperature.
Mica Sheet Insulation Types
By the mica paper, resin and properties, mica plates have following types:
Item | Code | Type | Properties |
Mica paper | YG-5660-H1/G1/S1/T1 YG -5660-H3/G3/S3 | Muscovite Plate | Heat Resistant 500oC |
Hardness | YG -5660-H/G/T | Rigid Plate | Hard |
Surface | YG -5660-H/T | Matt Plate | Surface Rough |
Application | YG -5660-H/G | Rigid Plate | Thickness < 3mm |
