FR4/G10 Epoxy Cloth Laminate Sheet
Additional Information
Type: Insulation Tape
Insulation class:B glass(130°C)
Color: green
Thickness: 0.1-50mm
Sheet dimension: 1020mm×1220mm, 1000×2000mm
Application: used In motor, electrical equipment for insulation structure parts, soft plate reinforcement and various kinds of machine parts, etc

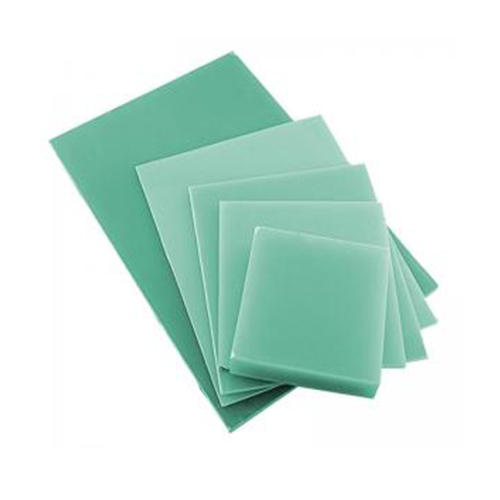

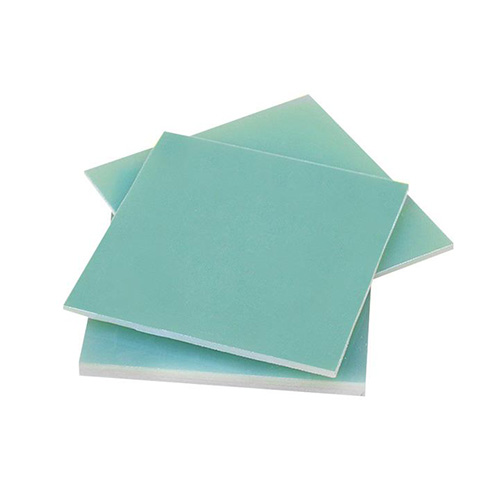

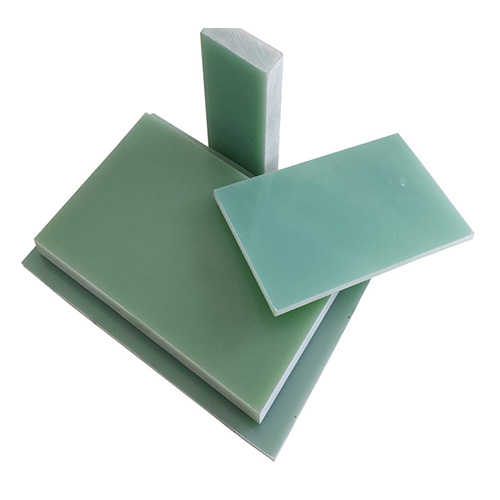

FR4/G10 Epoxy Cloth Laminate Sheet
FR4/G10 Epoxy Cloth Laminate Sheet Introduction
FR-4/G10 epoxy cloth laminate sheet or epoxy fiberglass cloth laminate sheet is a plate-like laminated product formed by electronic grade fiberglass cloth impregnated with epoxy resin and fire retardant under hot pressing of high temperature and pressure. It has high mechanical property and dielectric property, good heat, and moisture resistance, as well as strong mechanical processing property. It is a widely used insulation laminate sheet.
Insulaiton class:B glass(130°C).
Color: green
Thickness: 0.1-50mm
Sheet dimension: 1020mm×1220mm, 1000×2000mm
FR4/G10 Epoxy Cloth Laminate Sheet Surface Requirement
The surface of the epoxy cloth laminate sheet should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress, dirty spot, and uneven color, but a little color patches is allowed.
FR4/G10 Epoxyglass Cloth Laminate Sheet Features
1. Excellent dielectric strength
2. Good machinability
3. Lightweight
4. Strong, stiff, tough, and durable
5. Heat and water-resistant
6. Corrosion and chemical resistant
7. Good mechanical strength
8. Excellent wear properties
9. Good dimensional stability
10. Low moisture absorption
11. Excellent creep resistance
FR4/G10 Epoxy Cloth Laminate Sheet Application
1. Sensitive electronic equipment
2. Circuit Board manufacturing
3. Relays and Switches
4. Communication systems
5. Mechanical and appliances lines
FR4/G10 Epoxy Cloth Laminate Sheet Specifications
Test Item | Test Condition | Unit | SPEC | Typical Value |
Tg | DSC | °C | ≥125 | 135 |
Flammability | E-24/125 | ____ | UL94V-0 | V-0 |
Volume Resistivity | C-96/35/90 | MΩ.cm | ≥106 | 2.0×108 |
Surface Resistivity | C-96/35/90 | MΩ | ≥104 | 2.0×106 |
Arc Resistivity | D-48/50+D-0.5/23 | S | ≥60 | 135 |
Dielectric Breakdown | D-48/50+D-0.5/23 | KV | ≥40 | 60 |
Dielectric Constant(1MHz) | 1MHz | ____ | ≤5.4 | 4.6 |
Dissipation Factor(1MHz) | 1MHz | ____ | 0.035 | 0.0117 |
Thermal Stress | 288°C,10S | ____ | No Delamination | No Delamination |
Flexural Strength | LW | N/mm2 | ≥415 | 500 |
CW | ≥315 | 450 | ||
Absorption | D-24/23 | % | ≤0.8 | 0.15 |
CTI | IEC60112 Method | V | 175~250(Grade 3) | 210 |
