Custom Phenolic Cotton Parts for Saudi Transformer Plant
Project Success: Supplying Custom CNC Machined Phenolic Cotton Fabric Boards to a Leading Transformer Manufacturer in Saudi Arabia
Project Overview
Client Location: Riyadh, Saudi Arabia
Product Supplied: 3025 Grade Phenolic Cotton Laminated Board
Project Scale: Bulk Industrial Supply (MOQ: 500kg)
Application: Structural heavy-duty spacers in oil-immersed transformers.
The Challenge: Extreme Middle East Climates & Rigid Dimensional Tolerances
A premier power grid equipment manufacturer based in Saudi Arabia was securing components for a major government substation tender. Due to the notorious ambient high temperatures of the Middle East, the client required an insulation material with exceptional mechanical toughness that would not warp, crack, or delaminate under continuous thermal stress up to 120°C.
Furthermore, the client's engineering drawing specified an incredibly strict dimensional tolerance of ±0.1mm for the interlocking structural parts. In the phenolic laminate processing industry, managing inevitable micro-errors during high-speed CNC routing of cotton-base sheets can be a challenge. The client had previously rejected a shipment from another vendor due to rough edges and thickness variations.
Our Solution: Premium 3025 Base Material + Advanced CNC Calibration
As an experienced Chinese insulation materials exporter, Chengrui Insulation stepped in to optimize the technical blueprint.
Material Optimization: We utilized our premium 3025 Grade (PF CC 201) Phenolic Cotton Fabric Board, which blends high-purity phenolic resin with tightly woven long-fiber cotton cloth. This provides significantly higher impact strength and machining stability than standard paper-base bakelite boards.

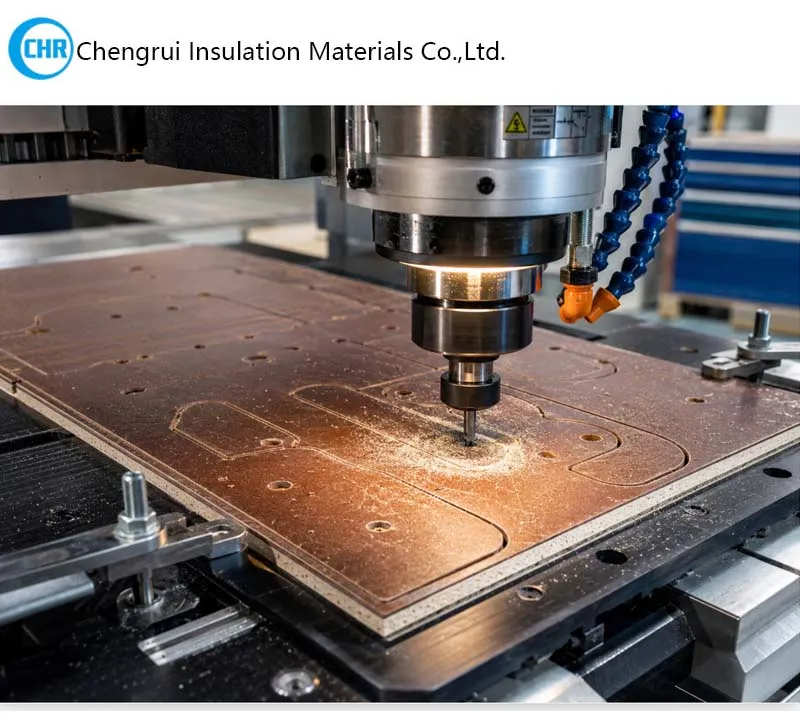

Advanced Machining Protocol: To meet the demanding Saudi technical audit, our Xuchang factory calibrated our precision CNC milling machinery specifically for this substrate. We controlled the spindle speed and cooling intervals to eliminate thermal expansion during cutting, achieving a flawless surface finish and ensuring all dimensions sat securely within the ±0.1mm threshold.
Strict Quality Assurance (QA): Every single processed piece underwent a micrometer tolerance check and visual edge inspection before entering the packaging line.
Outcome: On-Time Delivery and a Long-Term Partnership

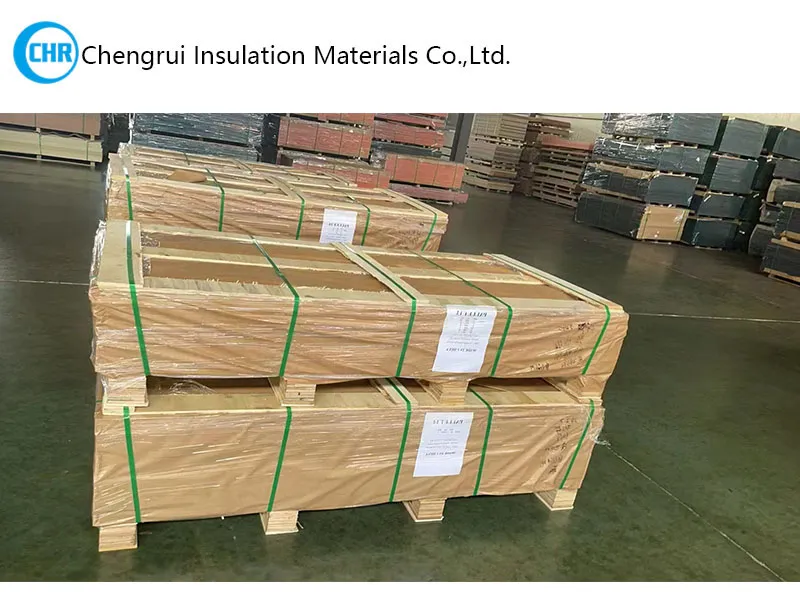

This shipment, weighing several tons, was packaged in strict accordance with our export standards: featuring moisture-proof sealing and secure mounting on reinforced, heavy-duty wooden pallets to ensure the goods could withstand the rigors of sea transport and the arid climate of Saudi Arabia.
Upon arrival in Riyadh, the shipment underwent rigorous inspection by the client’s quality control team; all components passed, with the custom-fabricated phenolic cotton sheets fitting the high-voltage transformer assemblies perfectly. The client highly commended Chengrui for its transparent communication regarding machining tolerances and its integrity in engineering and technical matters. Consequently, Chengrui Insulation Materials has officially become the client's long-term strategic supplier in the Chinese market, responsible for all future procurement of rigid insulation sheets.
🛠️ Need Precision Machined Insulation Parts for Your Next Project?
Whether you require raw 3025 phenolic cotton fabric sheets or complex CNC machined components, Chengrui Insulation delivers factory-direct wholesale solutions tailored to international engineering standards (IEC 60893).
Minimum Order Quantity for Export: 500 kg.
Submit Your AutoCAD/DWG Drawings for a Bulk Quote
