6640 NMN Nomex Insulation Paper
Chengrui Insulation supplies 6640 NMN insulation paper for motor manufacturers, transformer factories, electrical equipment producers and insulation material distributors worldwide.
Additional Information
Type: Insulation Paper
Thickness:0.15mm-0.4mm
Width:914 mm or customized
Color: White with orange line or yellow line
Insulation Class: class F (155℃) or Class H (180℃)
Application: Insulators, Winding Wire Coating Insulation, Electrical Base, Shell, Motor

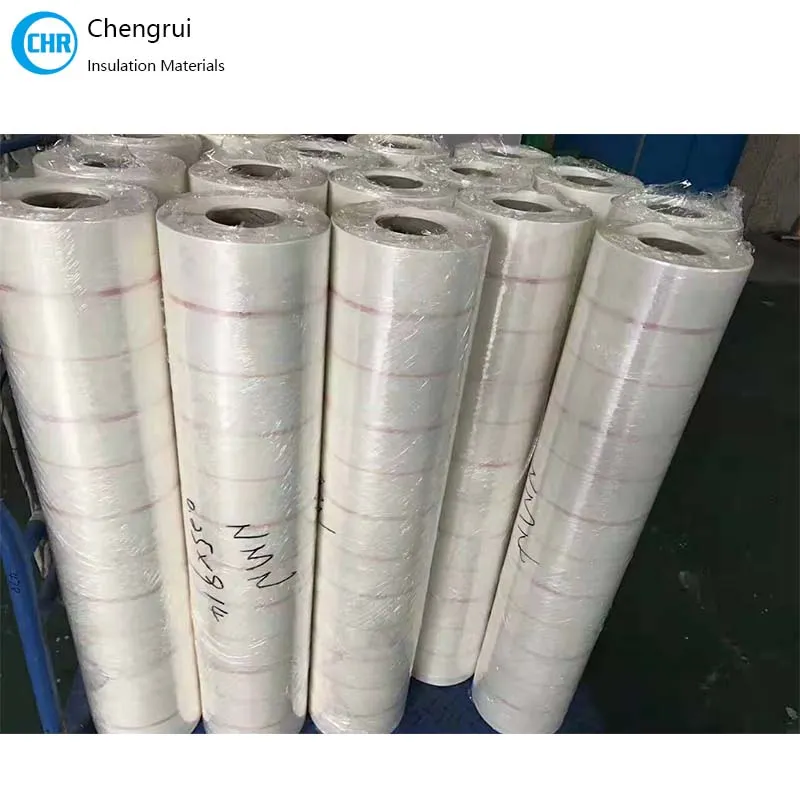

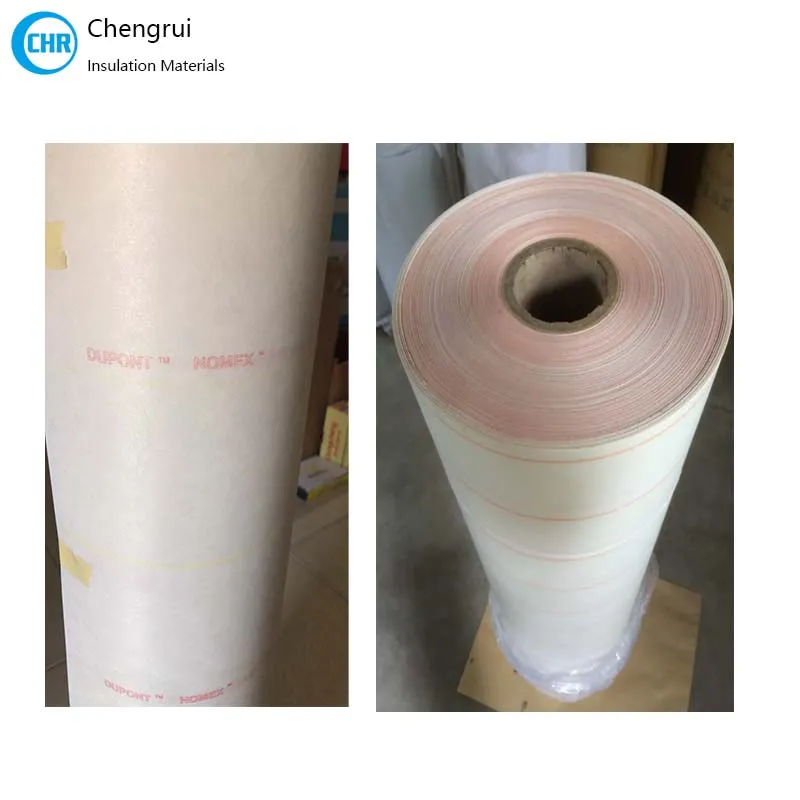

6640 NMN Nomex Insulation Paper
6640 NMN nomex insulation paper is a soft composite insulation material, composed of two layers of Nomex paper and one layer of polyester film. This nomex nsulation paper shows high thermal resistance, excellent mechanical properties like high tensile strength, and high edge tear resistance and electrical properties, it was designed for automatic insertion machine.
Chengrui Insulation supplies 6640 NMN insulation paper for motor manufacturers, transformer factories, electrical equipment producers and insulation material distributors worldwide.
| Product name | 6640 NMN insulation paper |
| Material Structure | Nomex / Polyester Film / Nomex |
| Thermal Class | Class F (155℃) Class H(180℃) |
| Color | Natural white |
| Thickness | 0.15-0.4mm |
| Width | 914mm or customized |
6640 NMN Insulation Paper Features
1. Superior thermal properties and mechanical properties.
2. Tearing resistance as well as the excellent dielectric strength from polyester film.
6640 NMN Insulation Paper Applications
NMN is mainly used as a slot liner, slot closure, phase-to-phase, and turn-to-turn insulation in low or medium voltage electrical motors of Class F (155℃) or Class H (180℃) insulation system, also, it's also used as interlayer insulation in transformers and other electrical machines and appliances.
6640 NMN Insulation Paper Specifications
THICKNESS mm | NMN 0.16 | NMN 0.18 | NMN 0.2 | NMN 0.24 | NMN 0.3 | NMN 0.35 | NMN 0.4 | NMN 0.47 | |
Tensile Strength N/10 | MD | 170 | 202 | 234 | 273 | 335 | 403 | 454 | 476 |
TD | 143 | 170 | 210 | 214 | 332 | 407 | 403 | 493 | |
Elogation % | MD | 28 | 31 | 25 | 34 | 50 | 49 | 54 | 51 |
TD | 4 | 52.6 | 40.31 | 46.12 | 81 | 64 | 73 | 87 | |
Breakdown | 12 | 13 | 15 | 16 | 17 | 18 | 22 | 24 |
